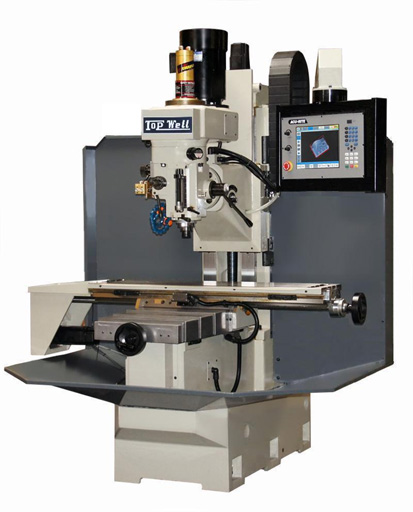

Model : TW-32QI
TW-32QI SPECIFICATIONS
| Model |
TW-32QI |
|
| Table |
Table Size |
254 x 1270 (10" x 50") |
|
T-slots |
16 x3 (0.63"x 3) |
|
|
T-slots distance |
65 (2.56") |
|
| Travels |
Longitudinal (X) |
760 (30") |
|
Cross (Y) |
500 (20") |
|
|
Vertical (Z) |
500 (20") |
|
|
Spindle to column |
500 (20") |
|
|
Spindle to table min-max |
100 ~ 600 (3.93" ~ 23.62") |
|
| Spindle |
Taper |
ISO#40 |
|
Main motor power |
5HP |
|
|
I nverter head |
70 ~ 4000 |
|
|
Variable speed head |
70 ~ 3800 |
|
|
Spindle travel |
140 (5.5") |
|
|
Quill feedrate |
0.0431/0.0812/0.13716 (0.0017"/00032"/0.0054") |
|
|
Swiveling angle of |
45° (R & L) |
|
| Packing size |
Net weight |
1800 (3600lbs) |
|
L x W x H |
1625 x 1651 x 2235 (64" x 65" x 88") |
|
| Machining capacity |
Maximum work piece |
350 (770lbs) |
All specifications and designs are subject to change without notice.
